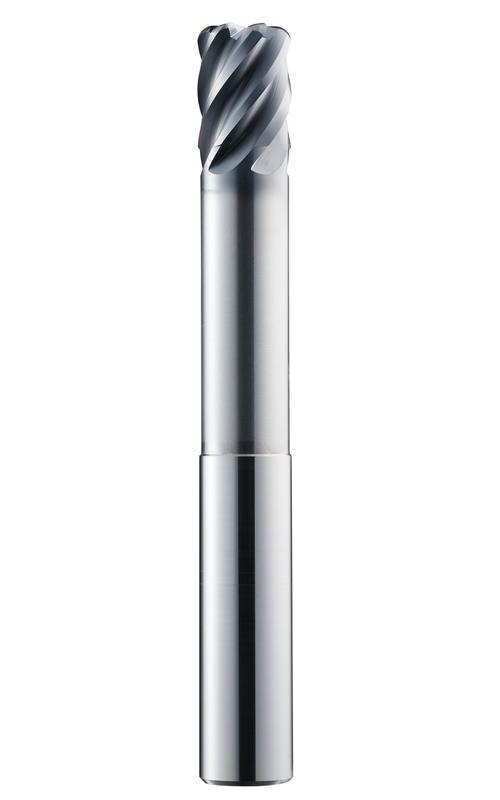

SGS® 35191 T-Carb® 51LC High Performance Imperial Corner Radius End Mill, 1 in Dia Cutter, 1/4 in Corner Radius, 1-1/4 in Length of Cut, 6 Flutes, 1 in Dia Shank, 6 in OAL, Proprietary Nano Composite Coated
SGS® 35191 T-Carb® 51LC High Performance Imperial Corner Radius End Mill, 1 in Dia Cutter, 1/4 in Corner Radius, 1-1/4 in Length of Cut, 6 Flutes, 1 in Dia Shank, 6 in OAL, Proprietary Nano Composite Coated

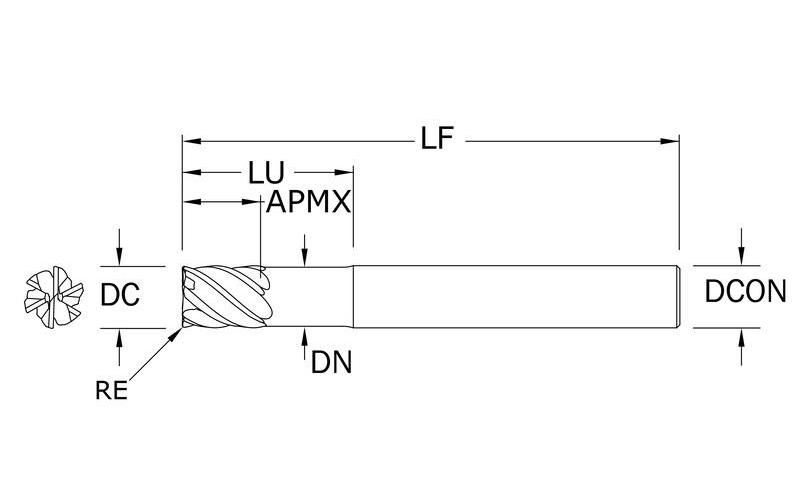

SGS® Corner Radius End Mill, High Performance Imperial, Series: T-Carb® 51LC, 1 in Diameter Cutter, 1/4 in Corner Radius, 6 in Overall Length, 1-1/4 in Length of Cut, 6 Flutes, Spiral Flute, 1 in Shank Diameter, Right Hand Cutting Direction, 41 deg Helix Angle, Straight Shank, 2-5/8 in Shank Length, Carbide, Proprietary Nano Composite Coated
Features
- Engineered for High Speed Milling using Trochoidal and Peel Milling techniques
- Eccentric relief provides superior strength and smoother surface finish
- Necked design with blended diameter transitions provide clearance to reach
- Enhanced corner geometry with tight tolerance corner radii
- Recommended for materials <= 45 HRc (<= 420 Bhn)
Specifications
SGS® Corner Radius End Mill, High Performance Imperial, Series: T-Carb® 51LC, 1 in Diameter Cutter, 1/4 in Corner Radius, 6 in Overall Length, 1-1/4 in Length of Cut, 6 Flutes, Spiral Flute, 1 in Shank Diameter, Right Hand Cutting Direction, 41 deg Helix Angle, Straight Shank, 2-5/8 in Shank Length, Carbide, Proprietary Nano Composite Coated
