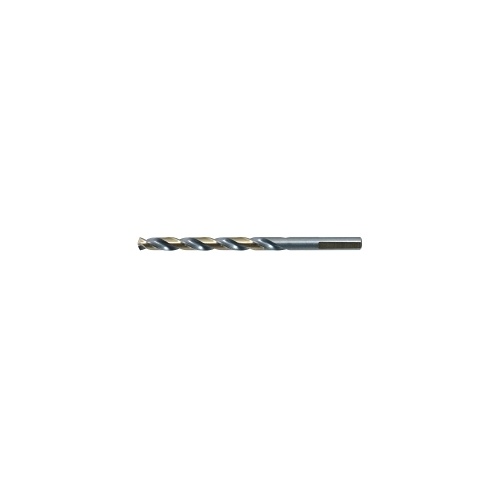

Drillco 400F126 Heavy Duty Jobber Length Drill Bit, 13/32 in Drill - Fraction, 0.4062 in Drill - Decimal Inch, 140 deg Point, HSS, Black/Gold
Drillco 400F126 Heavy Duty Jobber Length Drill Bit, 13/32 in Drill - Fraction, 0.4062 in Drill - Decimal Inch, 140 deg Point, HSS, Black/Gold
Drillco 400F126 Heavy Duty Jobber Length Drill Bit, 13/32 in Drill - Fraction, 0.4062 in Drill - Decimal Inch, 140 deg Point, HSS, Black/Gold

Click to enlarge
WALTER SURFACE-DRILLCO
400F126

Drillco 400F126 Heavy Duty Jobber Length Drill Bit, 13/32 in Drill - Fraction, 0.4062 in Drill - Decimal Inch, 140 deg Point, HSS, Black/Gold

Drillco 400F126 Heavy Duty Jobber Length Drill Bit, 13/32 in Drill - Fraction, 0.4062 in Drill - Decimal Inch, 140 deg Point, HSS, Black/Gold

Catalog Number:
Manufacturer: WALTER SURFACE-DRILLCO- AD
Brand: WALTER SURFACE-DRILLCO
Item ID: DRIL 400F126
MPN: 400F126
Min Order Qty: 1

Heavy Duty 140 Split Point drill for easier penetration. Body and clearance are black & gold surface treated for maximum lubricity. 3-flat shank reduces slippage in the drill chuck. Recommended for use in stainless steel and other hard metal drilling.

Drillco Jobber Length Drill Bit, Heavy Duty, Series: 400F, Imperial, 13/32 in Drill - Fraction, 0.4062 in Drill - Decimal Inch, 5-1/4 in Overall Length, 3-7/8 in Cutting Depth, 2 Flutes, Spiral Flute, 3-7/8 in Flute Length, 3-Flat Shank, 140 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Black/Gold, Applicable Materials: Stainless Steel and other Hard Metals

Sold As: 6/PK
Springfield

Features

  • Heavy duty 140 deg split point drill with a nitride surface treatment, that gives a hard, protective layer to the drill (increases hardness without increasing brittleness), which is measurably harder than HSS
  • Body and clearance are gold and black surface treated for maximum lubricity
  • 3-flat shank helps reduce slippage in the drill chuck
  • Self centering 140 deg split-point for reduced thrust requirements and minimized walking
  • Black oxide surface treatment for improved life
  • Jobber length for most use cases

Specifications

Applicable Materials
Stainless Steel and other Hard Metals
Cutting Depth
3-7/8 in
Cutting Direction
Right Hand
Cutting Edge Material
HSS
Drill Diameter Measurement System
Imperial
Drill Size - Decimal Inch
0.4062 in
Drill Size - Fraction
13/32 in
Finish
Black/Gold
Flute Length
3-7/8 in
Flute Type
Spiral
Material
HSS
Number of Flutes
2
Overall Length
5-1/4 in
Point Angle
140 deg
Point Type
Split
Series
400F
Shank Type
3-Flat
Through Coolant (Yes/No)
No
Type
Heavy Duty

Heavy Duty 140 Split Point drill for easier penetration. Body and clearance are black & gold surface treated for maximum lubricity. 3-flat shank reduces slippage in the drill chuck. Recommended for use in stainless steel and other hard metal drilling.

Drillco Jobber Length Drill Bit, Heavy Duty, Series: 400F, Imperial, 13/32 in Drill - Fraction, 0.4062 in Drill - Decimal Inch, 5-1/4 in Overall Length, 3-7/8 in Cutting Depth, 2 Flutes, Spiral Flute, 3-7/8 in Flute Length, 3-Flat Shank, 140 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Black/Gold, Applicable Materials: Stainless Steel and other Hard Metals
