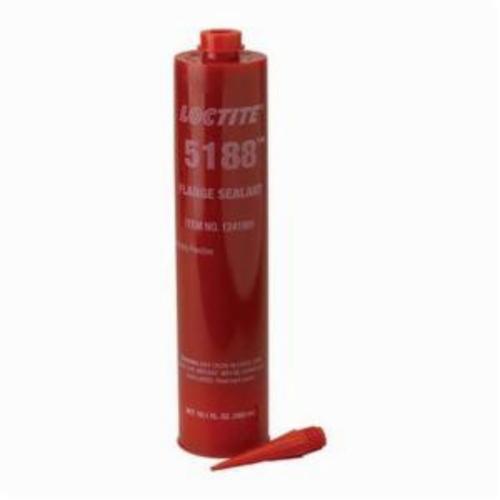

Loctite® 5188™ Flange Sealant, 300 mL Cartridge, Liquid, Red, 1.13
Loctite® 5188™ Flange Sealant, 300 mL Cartridge, Liquid, Red, 1.13
Loctite® Flange Sealant, Series: 5188™, Cartridge, 300 mL, Dimethacrylate Base, Composition: Polyurethane Meth Acrylate High Boiling Meth Acrylate 2-Hydroxyethyl Meth Acrylate 2-Phenoxyethyl Acrylate, Methacrylate Ester, Ethane, Homopolymer, Ethane, Tetrafluoro, Homopolymer, Cumene Hydroperoxide, Acrylic Acid, Polyglycol Dimethacrylate, 1-Acetyl-2-Phenylhydrazine, Ethylene Glycol, Hydroxyalkyl Meth Acrylate Cumene, Adhesion Promoter, Liquid, 24 hr Curing, Red, Mild, -65 to 300 deg F, 1.13 Specific Gravity, >199.4 deg F Flash, 0.72% VOC, 14000 to 32000 cPs Viscosity Rating, Applicable Materials: Metal, 610 psi Tensile, 290 psi Shear Strength
Features
- Loctite® 5188™ gasket sealant is an ultra-tough anaerobic gasketing material with high elongation & toughness even after exposure to elevated temperature (up to 300 deg F continuous)
- High flexibility makes it perfect for large, highly stressed flanges
- It is designed for use on rigid metal flanged connections, such as gearboxes and engine casings, particularly where minor oil contamination of the flange surfaces can occur
- It is particularly suitable for use on aluminum substrates where very good adhesion is achieved
- Provides resistance to low pressures immediately after assembly (instant seal)
- Loctite® 5188 was formulated as an improved version of Loctite® 5127™ (otherwise known as 17430)
- May be dispensed by hand or robotically with the appropriate Loctite® product conditioning and dispensing systems
- Insoluble in water
Standards/Approvals: RoHS 2011/65/EU, OSHA 29 CFR 1910.1200
Application: Industrial Anaerobic, Industrial Sealants, Rigid Flange (Anaerobic and Polyacrylate), Sealing and Highly Flexible Assembly Gasketing
Loctite® Flange Sealant, Series: 5188™, Cartridge, 300 mL, Dimethacrylate Base, Composition: Polyurethane Meth Acrylate High Boiling Meth Acrylate 2-Hydroxyethyl Meth Acrylate 2-Phenoxyethyl Acrylate, Methacrylate Ester, Ethane, Homopolymer, Ethane, Tetrafluoro, Homopolymer, Cumene Hydroperoxide, Acrylic Acid, Polyglycol Dimethacrylate, 1-Acetyl-2-Phenylhydrazine, Ethylene Glycol, Hydroxyalkyl Meth Acrylate Cumene, Adhesion Promoter, Liquid, 24 hr Curing, Red, Mild, -65 to 300 deg F, 1.13 Specific Gravity, >199.4 deg F Flash, 0.72% VOC, 14000 to 32000 cPs Viscosity Rating, Applicable Materials: Metal, 610 psi Tensile, 290 psi Shear Strength
