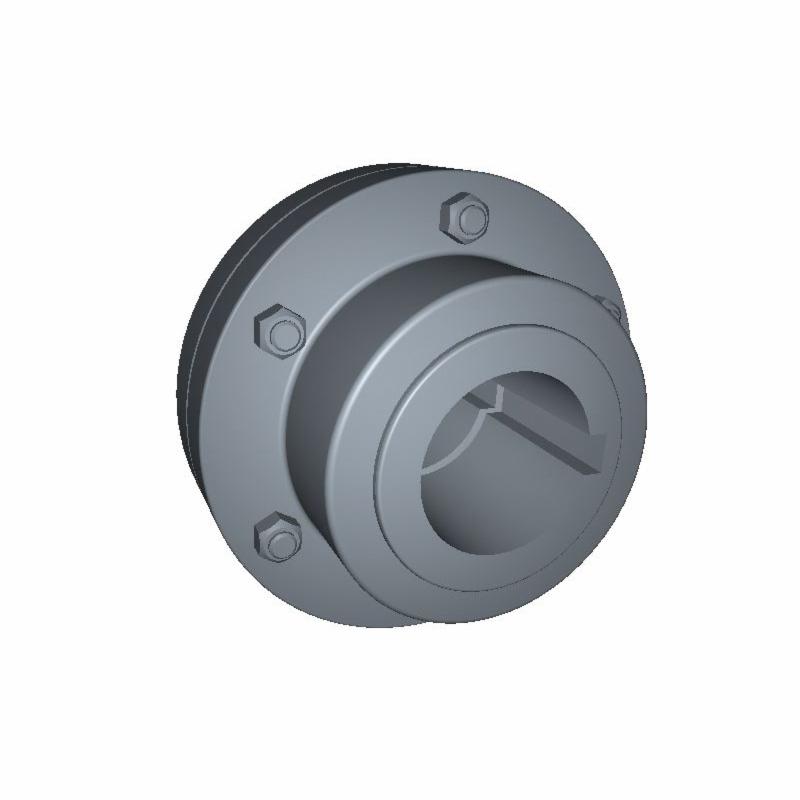

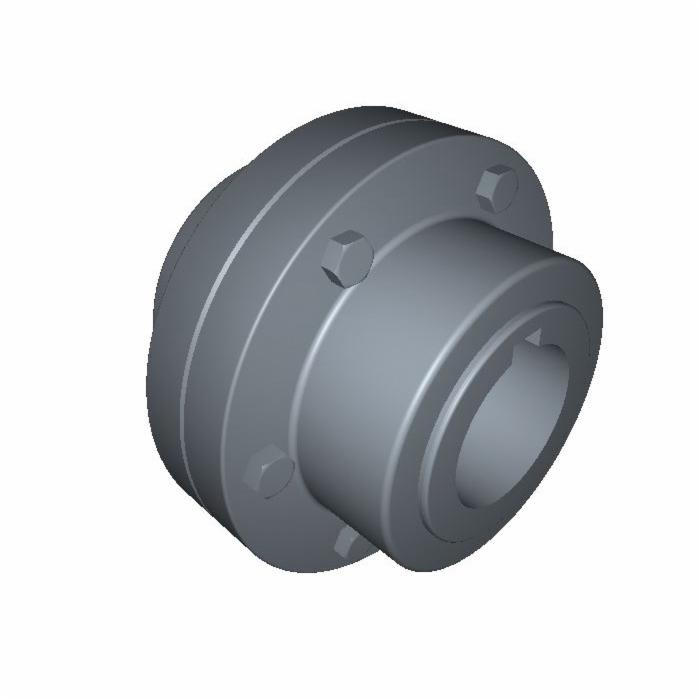

Powertork® 010045 F Series Flange Type Exposed Bolt Rough Stock Pilot Bore Full Flex Gear Coupling, 6 in Max Dia Bore, 13.63 in OD, 10.94 in OAL, 315 in-lb Torque, 5160 rpm Max
Powertork® 010045 F Series Flange Type Exposed Bolt Rough Stock Pilot Bore Full Flex Gear Coupling, 6 in Max Dia Bore, 13.63 in OD, 10.94 in OAL, 315 in-lb Torque, 5160 rpm Max
Catalog Number:
Manufacturer: EDER FLAG MANUFACTURING
Brand: EDER FLAG MANUFACTURING
Item ID: EDER 010045
MPN: 010045
Min Order Qty: 1
Powertork® Full Flex Gear Coupling, Flange Type Exposed Bolt Rough Stock Pilot Bore, Series: F Series, 6 in Max Bore, 13.63 in OD, 10.94 in Overall Length, 8-1/2 in Dia x 5.31 in L Hub, 315 in-lb Torque, 5160 rpm Maximum, 500 hp Power, 3/4 in Dia Bolt, 10 Bolts
Springfield
Specifications
Bolt Size
3/4 in Dia
Bore Diameter
6 in Max
Hub Size
8-1/2 in Dia x 5.31 in L
Maximum Speed
5160 rpm
Number of Bolts
10
Outside Diameter
13.63 in
Overall Length
10.94 in
Power Rating
500 hp
Series
F Series
Torque Rating
315 in-lb
Type
Flange Type Exposed Bolt Rough Stock Pilot Bore
Powertork® Full Flex Gear Coupling, Flange Type Exposed Bolt Rough Stock Pilot Bore, Series: F Series, 6 in Max Bore, 13.63 in OD, 10.94 in Overall Length, 8-1/2 in Dia x 5.31 in L Hub, 315 in-lb Torque, 5160 rpm Maximum, 500 hp Power, 3/4 in Dia Bolt, 10 Bolts
