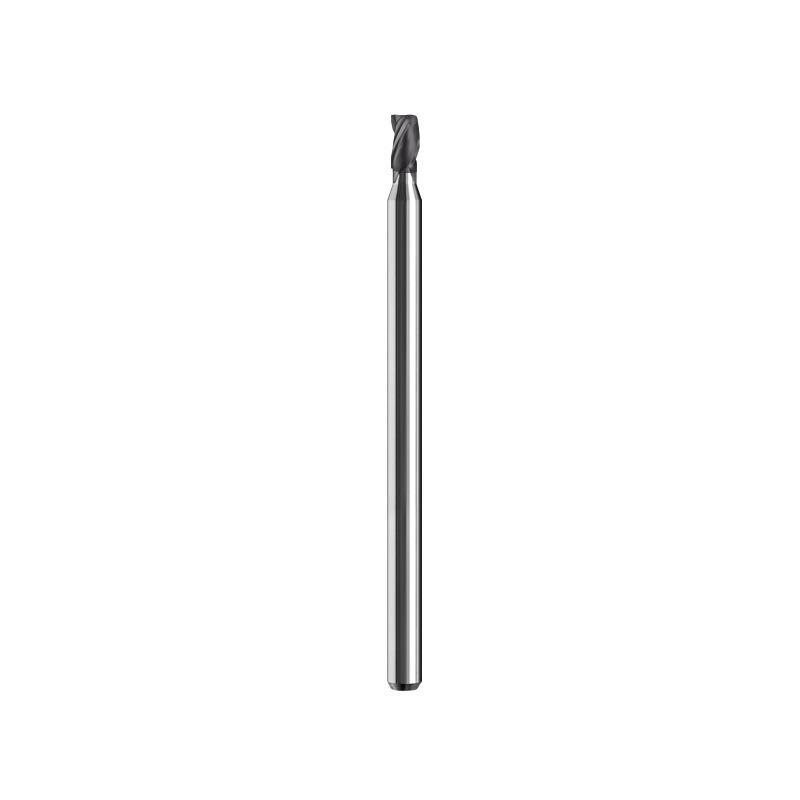

SGS® 01139 M3S Fractional Stub Length Square End Mill, 0.059 in Dia Cutter, 0.0885 in Length of Cut, 3 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Ti-NAMITE®-A Coated
SGS® 01139 M3S Fractional Stub Length Square End Mill, 0.059 in Dia Cutter, 0.0885 in Length of Cut, 3 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Ti-NAMITE®-A Coated
SGS® 01139 M3S Fractional Stub Length Square End Mill, 0.059 in Dia Cutter, 0.0885 in Length of Cut, 3 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Ti-NAMITE®-A Coated

Click to enlarge
DYNABRADEORPORATED
01139

SGS® 01139 M3S Fractional Stub Length Square End Mill, 0.059 in Dia Cutter, 0.0885 in Length of Cut, 3 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Ti-NAMITE®-A Coated

SGS® 01139 M3S Fractional Stub Length Square End Mill, 0.059 in Dia Cutter, 0.0885 in Length of Cut, 3 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Ti-NAMITE®-A Coated

Catalog Number:
Manufacturer: DYNABRADEORPORATED
Brand: DYNABRADEORPORATED
Item ID: DYNP 01139
MPN: 01139
Min Order Qty: 1

SGS® Square End Mill, Fractional Stub Length, Series: M3S, 0.059 in Diameter Cutter, 1-1/2 in Overall Length, 0.0885 in Length of Cut, 3 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Common Shank, 1.4115 in Shank Length, Solid Carbide, Ti-NAMITE®-A Coated

Sold As: 1/PK
Springfield

Features

  • Three flute design features improved chip space over four flutes and increased strength and feed capability over two flutes
  • Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
  • Advanced geometries that extend tool life, reduce chatter, cut cycle times, and improve part quality

Specifications

Cutter Diameter
0.059 in
Cutting Direction
Right Hand
Finish
Ti-NAMITE®-A Coated
Flute Type
Spiral
Helix Angle
30 deg
Length of Cut
0.0885 in
Material
Solid Carbide
Number of Flutes
3
Overall Length
1-1/2 in
Series
M3S
Shank Diameter
1/8 in
Shank Length
1.4115 in
Shank Type
Common
Type
Fractional Stub Length

SGS® Square End Mill, Fractional Stub Length, Series: M3S, 0.059 in Diameter Cutter, 1-1/2 in Overall Length, 0.0885 in Length of Cut, 3 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Common Shank, 1.4115 in Shank Length, Solid Carbide, Ti-NAMITE®-A Coated

Resources

  • SGS 301 Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SGS_301_Catalog.pdf
  • SGS 00988 RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SGS_00988_RoHS.pdf
  • SGS 00988 SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SGS_00988_SDS.pdf
  • SGS 301 Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SGS_301_Specification_Sheet.pdf
