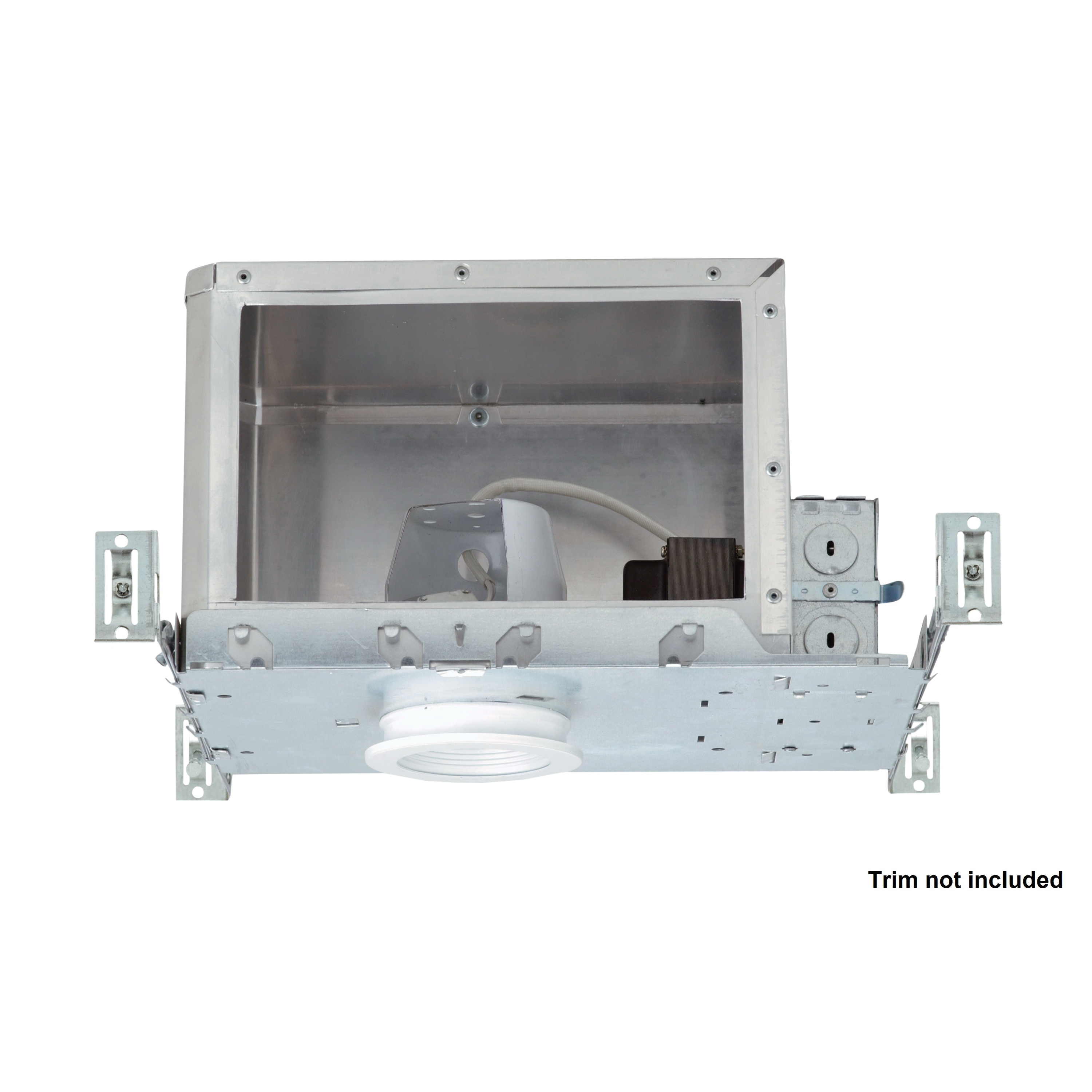

Nicor 13102 Low Voltage Universal Recessed Housing, Halogen Lamp, IC Insulation, 12 V AC, 3-1/2 in Ceiling Opening, Aluminum Housing

Features

• IC rated, suitable for direct contact with insulation
• Aluminum construction provides greater heat dissipation
• Heavy gauge Nicor captive hanger bars provide greater stability, allowing housing to be positioned at any point within a 24 in joist span, then locked in place with set screws

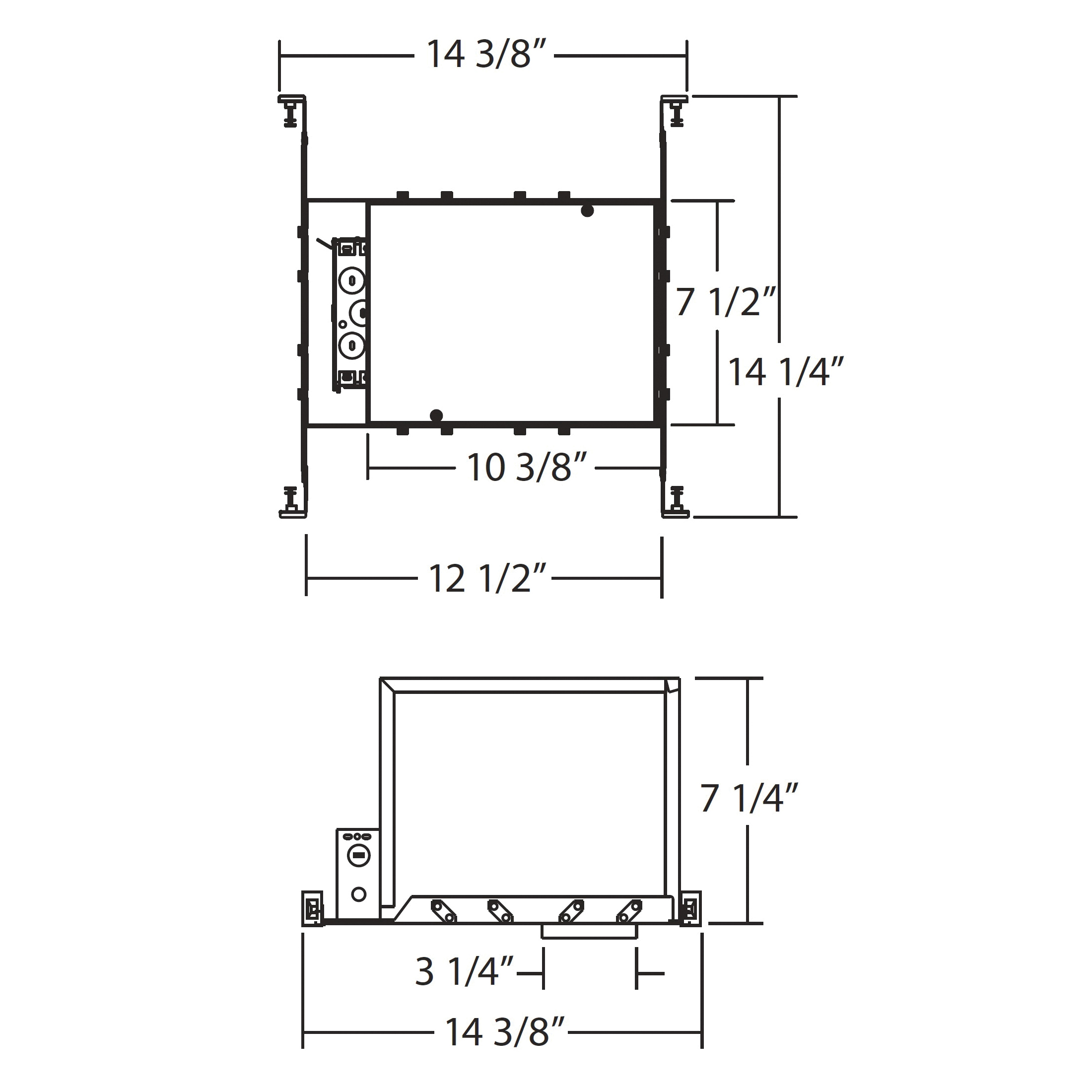

• 7-1/4 in height allows use in 2 x 8 in joist construction
• Housing is secured to plaster frame with screws and can be removed for access to junction box
• Housing adjusts from 1/2 to 1-1/2 in to accommodate ceiling thickness
• Transformer includes integral thermal protector guards against improper lamping and misuse of insulation materials
• Uses low voltage 20 to 50 W MR-16 or bi-pin JC bulbs (12 V), not included
• Class H 50 W transformer, step down from 120 to 12 V
• Use dimmers specifically designed for low voltage magnetic transformers
• Supplied with three IDEAL® push-in wire connectors
• Four pryouts with integral strain relief simplify Romex installation
• Unique hanger bar lip design helps align can to joist
• Bars can be repositioned 90 deg on plaster frame without tools
• Bars fit onto T-bar spine for quick alignment and can be permanently secured
• Score lines allow bars to be shortened without tools to accommodate a 12 in joist span
• Listed for through branch circuit wiring and includes several 3/4 in knockouts
• UL listed for direct contact with insulation (IC-rated)

Specifications

Resources

• Nicor 13102 Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nicor_13102_Specification_Sheet.pdf
