Cleveland® C80420 CEM-EM-5 Center Cutting High Helix Single End Square End Stub Length High Performance End Mill, 5/32 in Dia Cutter, 5/16 in Length of Cut, 5 Flutes, 3/16 in Dia Shank, 2 in OAL, TiAlN Coated
Cleveland® C80420 CEM-EM-5 Center Cutting High Helix Single End Square End Stub Length High Performance End Mill, 5/32 in Dia Cutter, 5/16 in Length of Cut, 5 Flutes, 3/16 in Dia Shank, 2 in OAL, TiAlN Coated
Cleveland® C80420 CEM-EM-5 Center Cutting High Helix Single End Square End Stub Length High Performance End Mill, 5/32 in Dia Cutter, 5/16 in Length of Cut, 5 Flutes, 3/16 in Dia Shank, 2 in OAL, TiAlN Coated

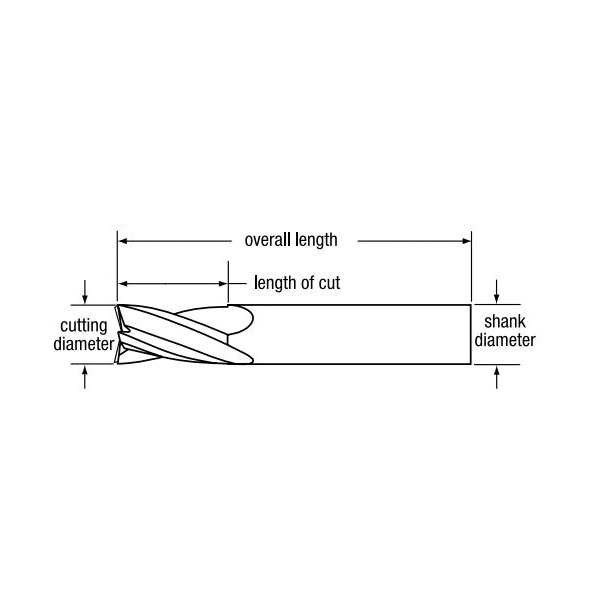

Click to enlarge
CLEVELAND
C80420

Cleveland® C80420 CEM-EM-5 Center Cutting High Helix Single End Square End Stub Length High Performance End Mill, 5/32 in Dia Cutter, 5/16 in Length of Cut, 5 Flutes, 3/16 in Dia Shank, 2 in OAL, TiAlN Coated

Cleveland® C80420 CEM-EM-5 Center Cutting High Helix Single End Square End Stub Length High Performance End Mill, 5/32 in Dia Cutter, 5/16 in Length of Cut, 5 Flutes, 3/16 in Dia Shank, 2 in OAL, TiAlN Coated

Catalog Number:
Manufacturer: Greenfield
Brand: CLEVELAND
Item ID: GRFL C80420
MPN: C80420
Min Order Qty: 1

Cleveland® High Performance End Mill, Center Cutting High Helix Single End Square End Stub Length, Series: CEM-EM-5, 5/32 in Diameter Cutter, 2 in Overall Length, 5/16 in Length of Cut, 5 Flutes, Spiral Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 47 deg Helix Angle, Straight Shank, Solid Carbide, TiAlN Coated

Sold As: 1/PK
Springfield

Features

  • Maximized strength due to increased cross-sectional area in the core and flute body
  • Combination of micrograin carbide substrate with high performance coatings
  • Achieve 50% greater chip loads and 20 to 40% higher speeds than conventional end mills
  • Designed for cutting applications involving excessive mechanical stress
  • -0.002 in cutting diameter tolerance
  • -0.0005 in (h6) shank diameter tolerance
  • Applicable on hastalloy, waspalloy, inconel, hardened steel, steel and stainless steel

Specifications

Center Cutting
Yes
Coating/Finish
TiAlN
Cutter Diameter
5/32 in
Cutting Direction
Right Hand
Diameter (Decimal)
0.16
Diameter (Fractional)
5/32
Diameter (Metric)
3.97
Diameter
0.16 Inch
Finish
TiAlN Coated
Flute Type
Spiral
Hand Of Spiral
Right
Helix Angle
47 deg
LOC Designation
Stub
Length of Cut
5/16 in
Material
Solid Carbide
Mill Construction
High Helix for Hardened Steel & Stainless Steel
Number Of Flutes
5
Overall Length (Decimal)
2
Overall Length
2 in
Series
CEM-EM-5
Shank Diameter
3/16 in
Shank Size (Decimal)
0.19
Shank Size
0.19 Inch
Shank Type
Straight
Type
Center Cutting High Helix Single End Square End Stub Length
Unit of Measure
Imperial

Cleveland® High Performance End Mill, Center Cutting High Helix Single End Square End Stub Length, Series: CEM-EM-5, 5/32 in Diameter Cutter, 2 in Overall Length, 5/16 in Length of Cut, 5 Flutes, Spiral Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 47 deg Helix Angle, Straight Shank, Solid Carbide, TiAlN Coated
