Cleveland® Q-Cobalt™ C14323 2175-TN High Performance Screw Machine Drill, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, M42 HSS-Co 8, TiN Coated
Cleveland® Q-Cobalt™ C14323 2175-TN High Performance Screw Machine Drill, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, M42 HSS-Co 8, TiN Coated
Cleveland® Q-Cobalt™ C14323 2175-TN High Performance Screw Machine Drill, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, M42 HSS-Co 8, TiN Coated

Click to enlarge
CLEVELAND
C14323

Cleveland® Q-Cobalt™ C14323 2175-TN High Performance Screw Machine Drill, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, M42 HSS-Co 8, TiN Coated

Cleveland® Q-Cobalt™ C14323 2175-TN High Performance Screw Machine Drill, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, M42 HSS-Co 8, TiN Coated

Catalog Number:
Manufacturer: Greenfield
Brand: CLEVELAND
Item ID: GRFL C14323
MPN: C14323
Min Order Qty: 1

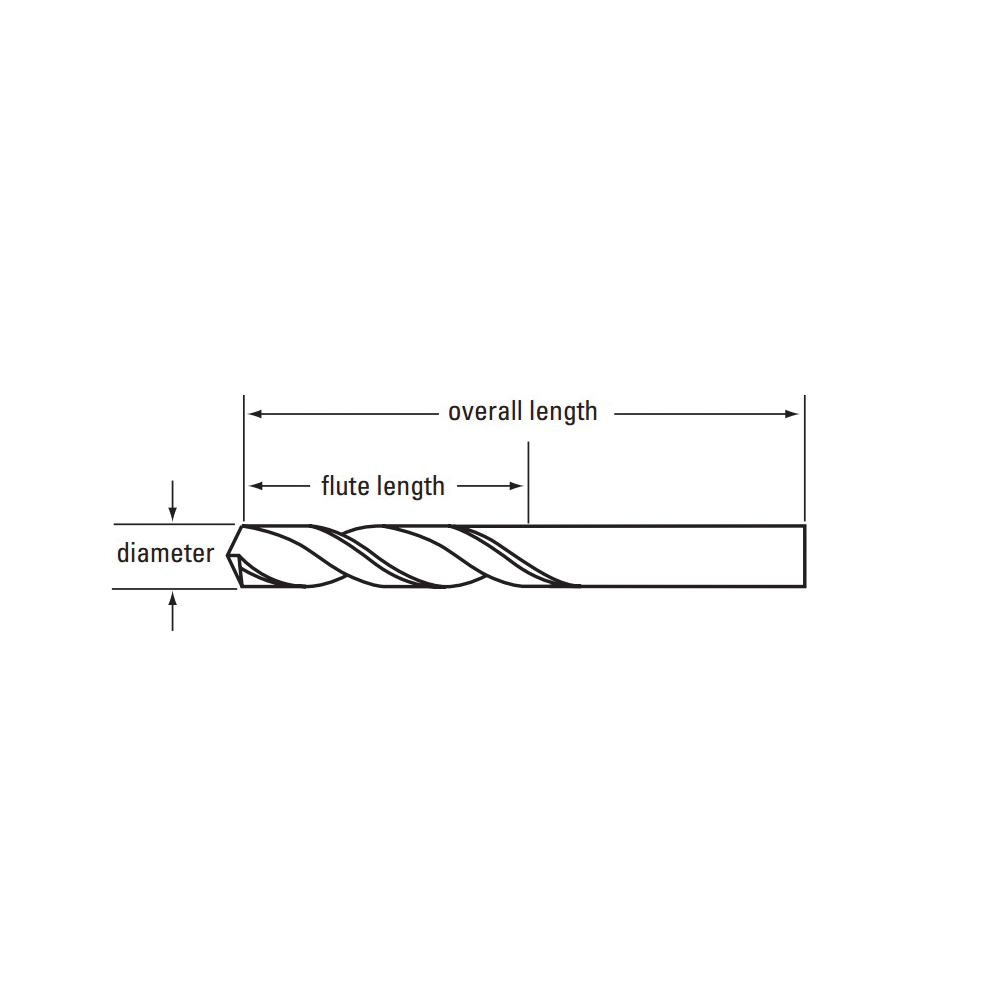

Cleveland® Q-Cobalt™ Screw Machine Drill, High Performance, Series: 2175-TN, Imperial, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, 1-3/4 in Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral/Wide Land Parabolic Flute, 3/4 in Flute Length, 3/32 in Dia x 1 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, TiN Coated, Applicable Materials: Chilled Cast Iron, High-Strength Alloy Steel, Stainless Steel and Tool Steel

Sold As: 10/PK
Springfield

Features

  • Effective deep hole drilling in a wide array of materials
  • Shorter design for accuracy and rigidity

Specifications

Applicable Materials
Chilled Cast Iron, High-Strength Alloy Steel, Stainless Steel and Tool Steel
Bit Type
Stub Length Drill Bits
Coating/Finish
TiN
Cutting Depth
5XD
Cutting Direction
Right Hand
Cutting Edge Material
M42 HSS-Co 8
Diameter (Decimal)
0.0938
Diameter (Fractional)
3/32
Diameter (Metric)
2.38
Diameter
3/32 Inch
Drill Diameter Measurement System
Imperial
Drill Size - Decimal Inch
0.0938 in
Drill Size - Fraction
3/32 in
Drill Style
Screw Machine
Finish
TiN Coated
Flute Length (Decimal)
0.75
Flute Length (Metric)
19.05
Flute Length
3/4 in
Flute Type
Right Spiral/Wide Land Parabolic
Hand Of Spiral
Right
Material
M42 HSS-Co 8
Number Of Flutes
2
Overall Length
1-3/4 in
Point Angle
135 deg
Point Type
Split
Series
2175-TN
Shank Length (Decimal)
1
Shank Length (Metric)
25.4
Shank Length
1 Inch
Shank Size (Decimal)
0.09
Shank Size (Metric)
2.38
Shank Size
3/32 in Dia x 1 in L
Shank Type
Straight
Type
High Performance
Unit of Measure
Fractional

Cleveland® Q-Cobalt™ Screw Machine Drill, High Performance, Series: 2175-TN, Imperial, 3/32 in Drill - Fraction, 0.0938 in Drill - Decimal Inch, 1-3/4 in Overall Length, 5XD Cutting Depth, 2 Flutes, Right Spiral/Wide Land Parabolic Flute, 3/4 in Flute Length, 3/32 in Dia x 1 in L Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, TiN Coated, Applicable Materials: Chilled Cast Iron, High-Strength Alloy Steel, Stainless Steel and Tool Steel
