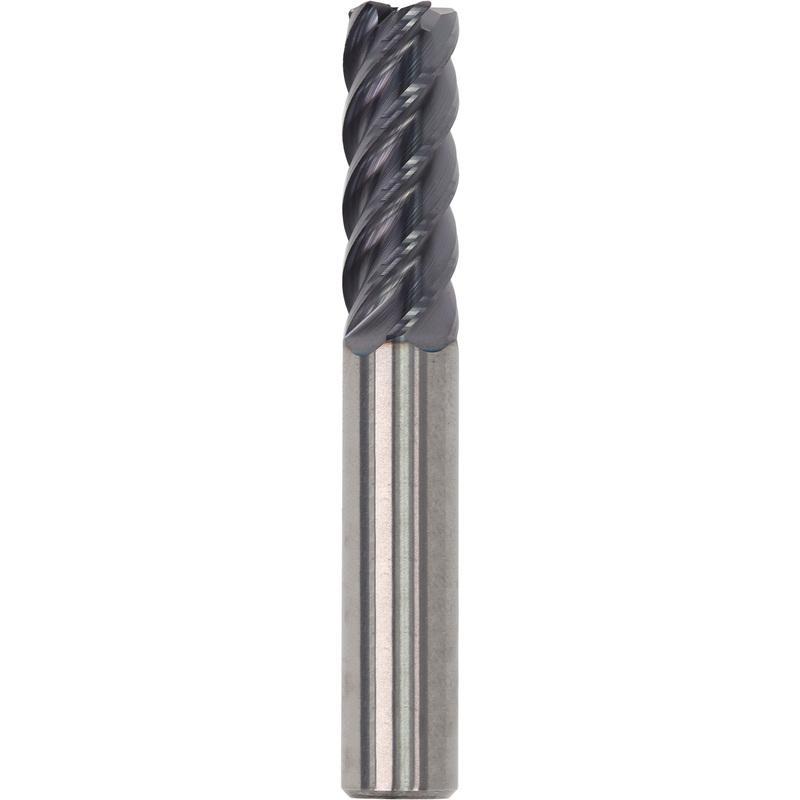

SGS® 42700 V-Carb™ 55MCR Center Cutting High Performance Positive Rake Single End End Mill, 20 mm Dia Cutter, 5 mm Corner Radius, 38 mm Length of Cut, 5 Flutes, 20 mm Dia Shank, 100 mm OAL, AlTiN Coated

SGS® 42700 V-Carb™ 55MCR Center Cutting High Performance Positive Rake Single End End Mill, 20 mm Dia Cutter, 5 mm Corner Radius, 38 mm Length of Cut, 5 Flutes, 20 mm Dia Shank, 100 mm OAL, AlTiN Coated

Catalog Number:
Manufacturer: AAMSTRAND ROPES & TWINES
Brand: AAMSTRAND ROPES & TWINES
Item ID: ROPE 42700
MPN: 42700
Min Order Qty: 1

V-Carb™ end mills set the standard for peak finish quality. These 5-flute, unequal helix tools feature unequal indexing and an ideal rake and relief combination for unmatched finishing capability. Available with a full selection of corner radii and ball nose configurations, the V-Carb™ portfolio is well equipped to handle your complex finishing requirements.

SGS® End Mill, Center Cutting High Performance Positive Rake Single End, Series: V-Carb™ 55MCR, 20 mm Diameter Cutter, 5 mm Corner Radius, 100 mm Overall Length, 38 mm Length of Cut, 5 Flutes, Right Spiral Flute, 20 mm Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Straight Shank, Solid Carbide, AlTiN Coated

Sold As: 1/PK
Springfield

Features

  • Unequal indexing, high helix and an ideal rake and relief combination for unmatched finishing capability
  • The choice when peak finish quality is the requirement
  • Enhanced corner geometry with tight tolerance corner radii
  • Recommended for materials <= 45 HRc (<= 420 Bhn)

Specifications

Corner Radius
5 mm
Cutter Diameter
20 mm
Cutting Direction
Right Hand
Finish
AlTiN Coated
Flute Type
Right Spiral
Helix Angle
45 deg
Length of Cut
38 mm
Material
Solid Carbide
Number of Flutes
5
Overall Length
100 mm
Series
V-Carb™ 55MCR
Shank Diameter
20 mm
Shank Type
Straight
Type
Center Cutting High Performance Positive Rake Single End

V-Carb™ end mills set the standard for peak finish quality. These 5-flute, unequal helix tools feature unequal indexing and an ideal rake and relief combination for unmatched finishing capability. Available with a full selection of corner radii and ball nose configurations, the V-Carb™ portfolio is well equipped to handle your complex finishing requirements.

SGS® End Mill, Center Cutting High Performance Positive Rake Single End, Series: V-Carb™ 55MCR, 20 mm Diameter Cutter, 5 mm Corner Radius, 100 mm Overall Length, 38 mm Length of Cut, 5 Flutes, Right Spiral Flute, 20 mm Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Straight Shank, Solid Carbide, AlTiN Coated

Resources

  • SGS 66784 Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SGS_66784_Catalog.pdf
  • SGS 00988 RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SGS_00988_RoHS.pdf
  • SGS 00988 SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SGS_00988_SDS.pdf
  • SGS 74649 Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SGS_74649_Specification_Sheet.pdf
