3M
7000133370

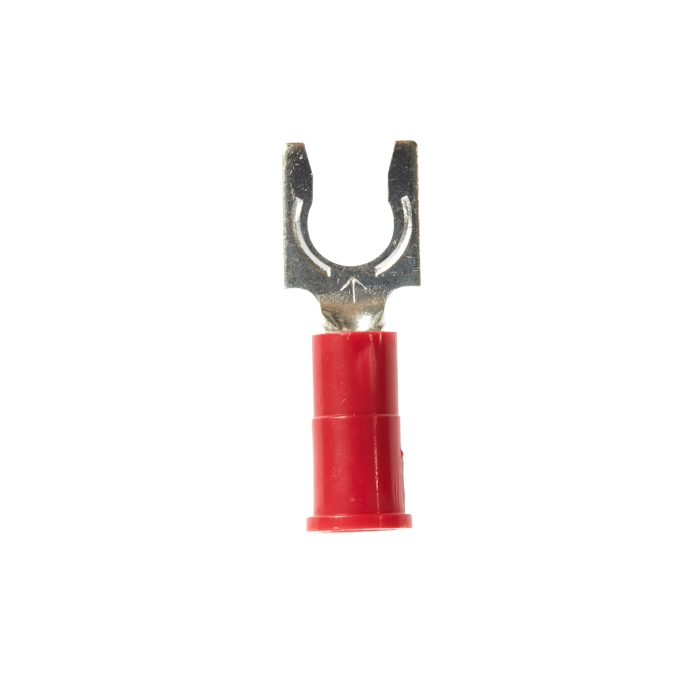

Scotchlok™ Vinyl Locking Fork
Scotchlok™ Vinyl Locking Fork
Catalog Number:
Manufacturer: 3M
Brand: 3M
Item ID: 3MIB 7000133370
MPN: 7000133370
Min Order Qty: 1
Springfield
Specifications
Barrel Inside Dia.
0.07 in
Barrel Style
Brazed
Color
Red
Conductor Size3
18 AWG
Conductor Size
22 - 18 AWG
Fork Type
Locking
Insulation Material
Vinyl
Material
Plastic
Max. Insulation O.D.
0.145 in;3.7 mm
Max. Insulation Outside Dia.
0.145 in
Max. Lock Width
0.35 in
Max. Operating Temperature
221 °F
Max. Overall Length
22.35 mm
Max. Overall Width
0.32 in;8.12 mm
Max. Wire Guage
18 AWG
Maximum Recommended Voltage Rating
600 V
Min. Overall Length
0.88 in
Min. Overall Width
0.32 in;8.12 mm
Min. Wire Gauge
18 AWG
Stud Size
#10
Terminal Style
Locking
Terminal Type
Fork
Type
Locking Fork
